Porsche

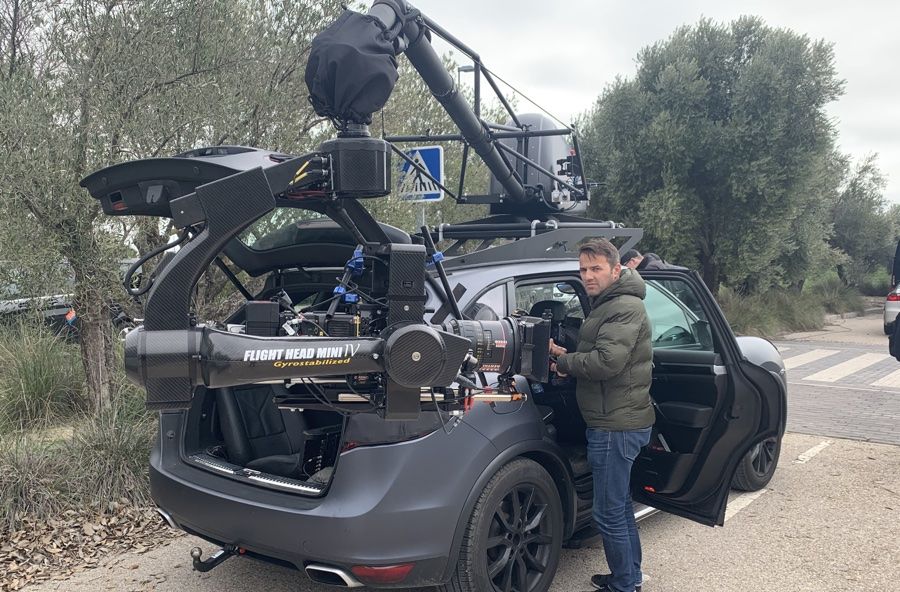

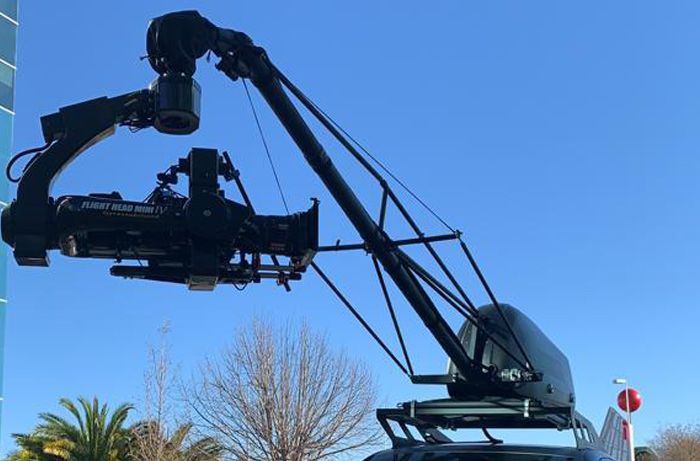

U-crane Dynamic

The U-crane Dynamic is lightweight and compact but powerful enough to go at high speed and work in the most difficult conditions. It can pan 360 °, tilt up and down which allows a wide range of shots.

Impressively stable, smooth and very dynamic.

The U-crane Dynamic system is operated through two joystick consoles from within the same vehicle.

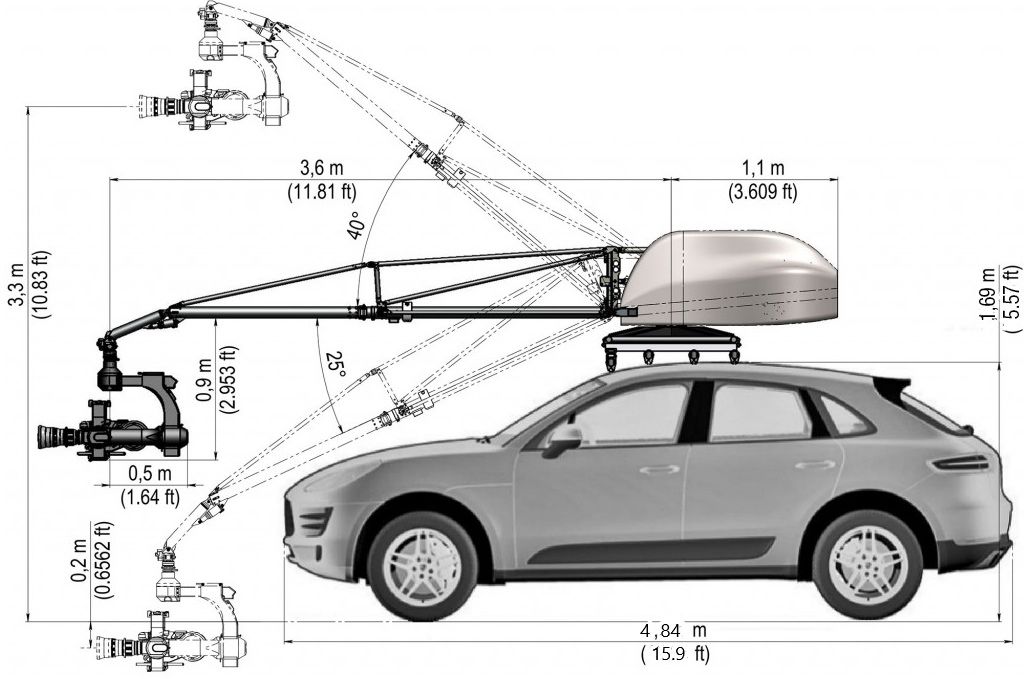

Technical specs

Arm length: 3,6 m
Height of the lens: 3,3m
Vertical axis 45 °, horizontal 360 °, + – 3 rotationss
Max. Horizontal axis speed 6.5 seg
Max. Vertical axis speed 1.5 seg / 45 °
Useful load 24kg
Weight with camera 180kg max
Max. speed 160km / h

Download data sheet
Compatible cameras and lenses

Rain Deflector

The Rain Deflector unique dual motor configuration with power management micro processors delivers a powerful, highly effective rain deflector in a compact, light-weight design.
Features
  • Two removable 6.5 x 6.5 and 4 x 5.6 (optional) filter stages.
  • Wireless Remote On/Off
  • 3D printed and aluminum construction.
  • 19mm & 15 mm rod mounting brackets.
  • The power management electronics supply a constant current to the motors regardless the voltage (with in its voltage range).
    • That means the speed of the Zero stays constant as the voltage drops or fluctuations due to line loss or battery losing charge.
    • It also means no more center dot due to the glass slowing down.
  • Compatible Lenses
    • All lenses from a small prime to Optimo 12-1 Zoom.
    • Max 162 mm diameter.

Download data sheet
